RS485 Din Rail Electric Three Phase Energy Meter Power Consumption kWh Voltage Current Wattmeter Monitor Modbus RTU 380V 400V
online service
Product Description

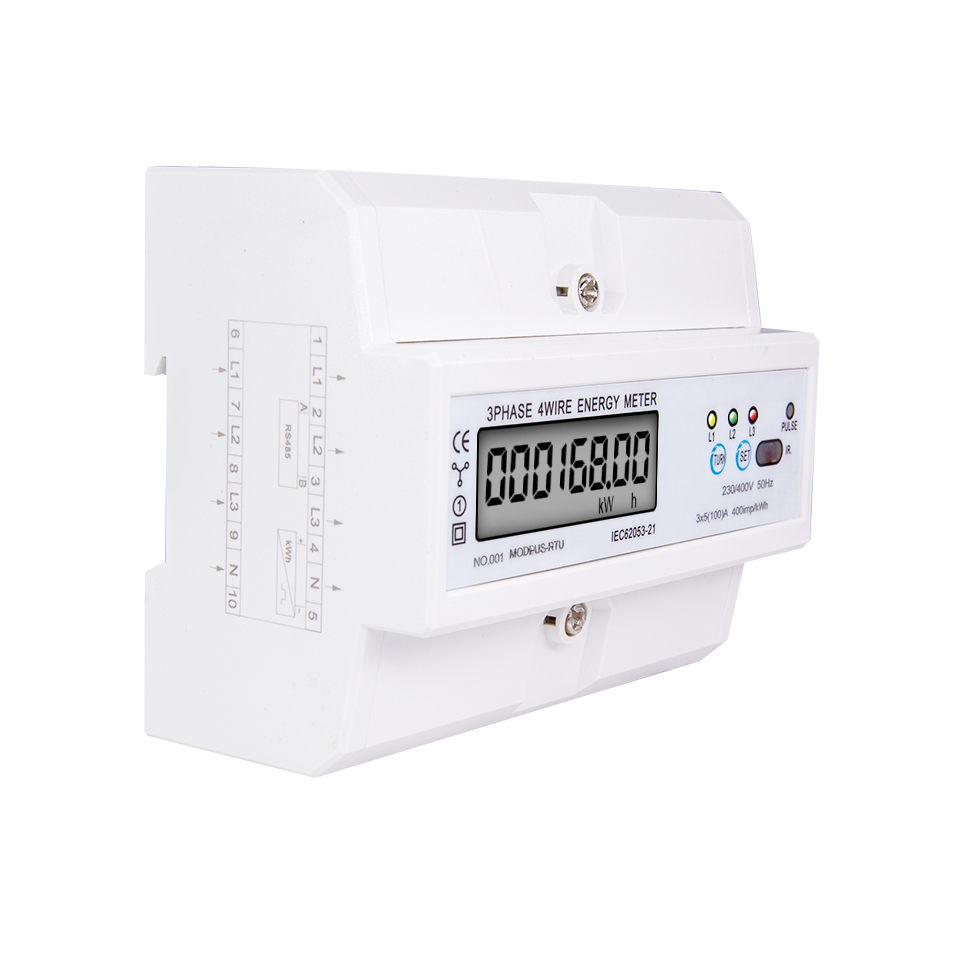

RS485 Modbus-RTU Multifunctional DIN Rail 3 Phase 4 Wire LCD Wattmeter Electronic Power Consumption Energy Meter 5-100A 380V AC 50Hz
Parameters:
Type: Three Phase Four Wire Electronic TypeMateriel: Metal + ABSReference Voltage: 3 X 230/400(V)Reference Current: 3 X5(100)ARated
Frequency: 50Hz/60HzConstant Pulse: 400imp / kWh

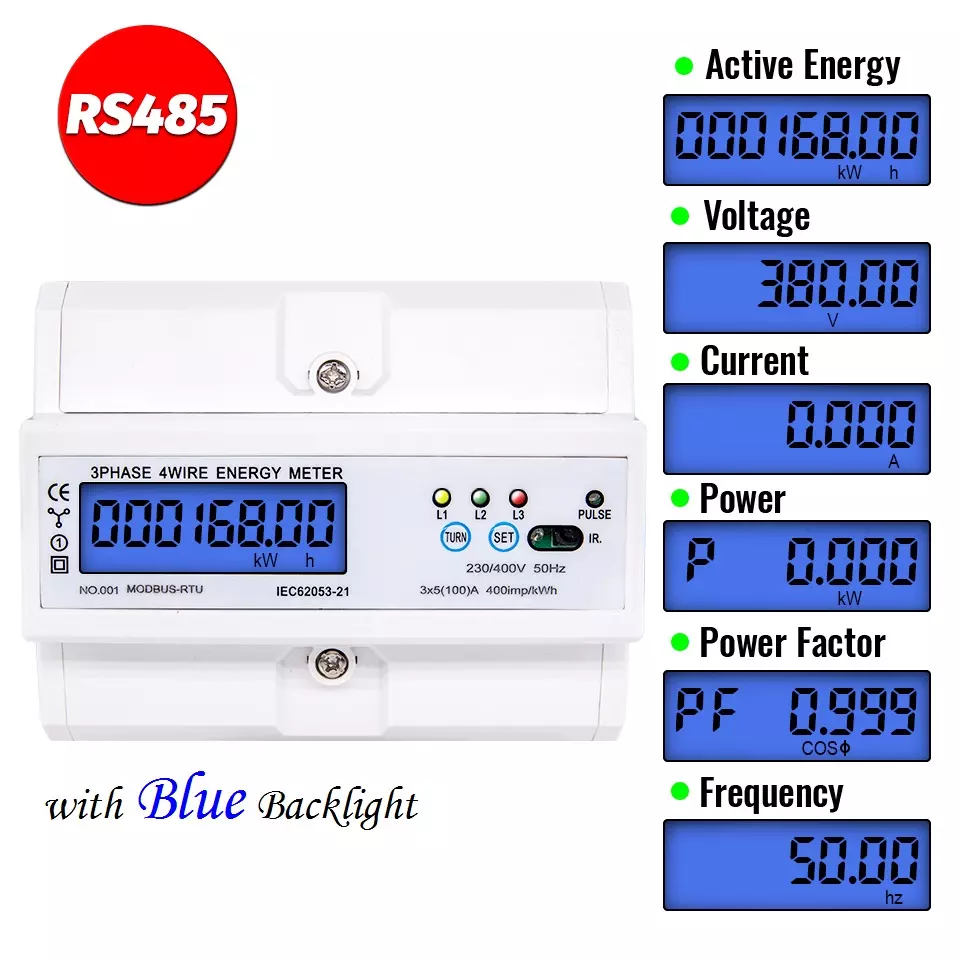

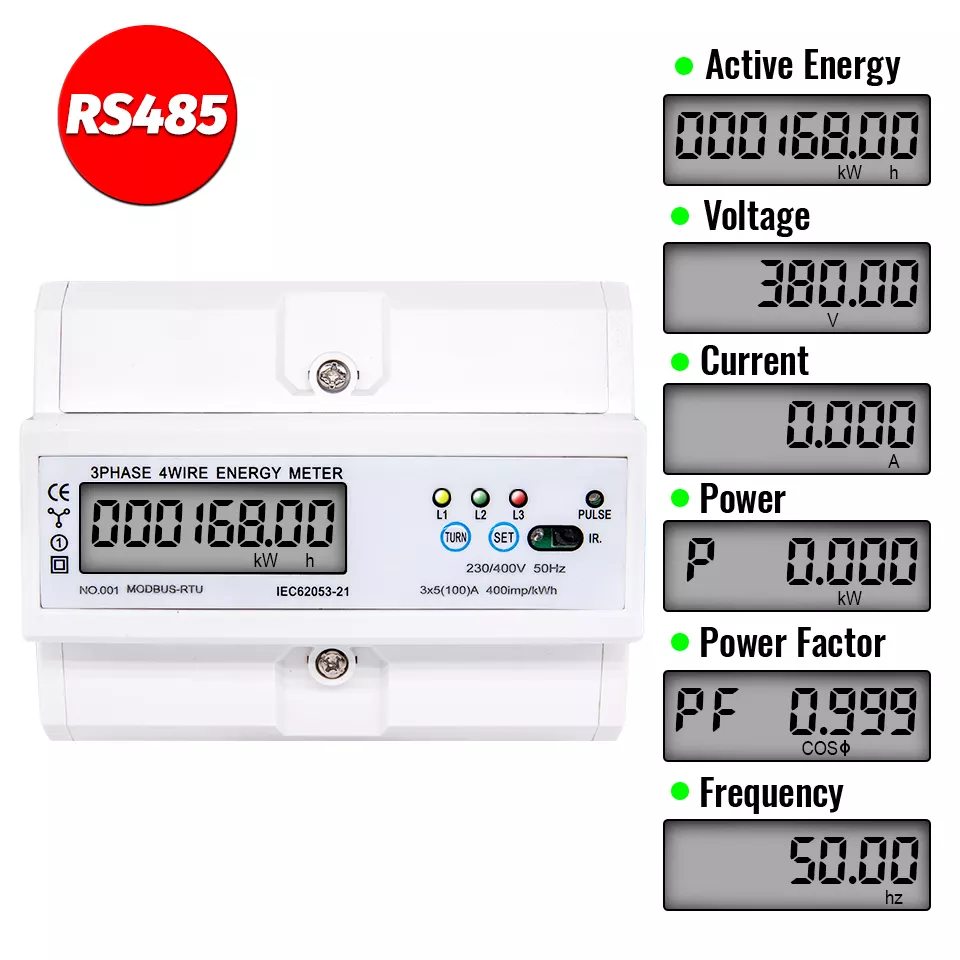

Display: LCD 6 + 1Power Consumption: ≤2W, 10VAInstallation:35mm DIN railThe meter is multifunctional rotation display :Active Energy KWh ,Reactive Energy(kvarh),Voltage , Current , Power , Frequency and Power Factor.
Features:

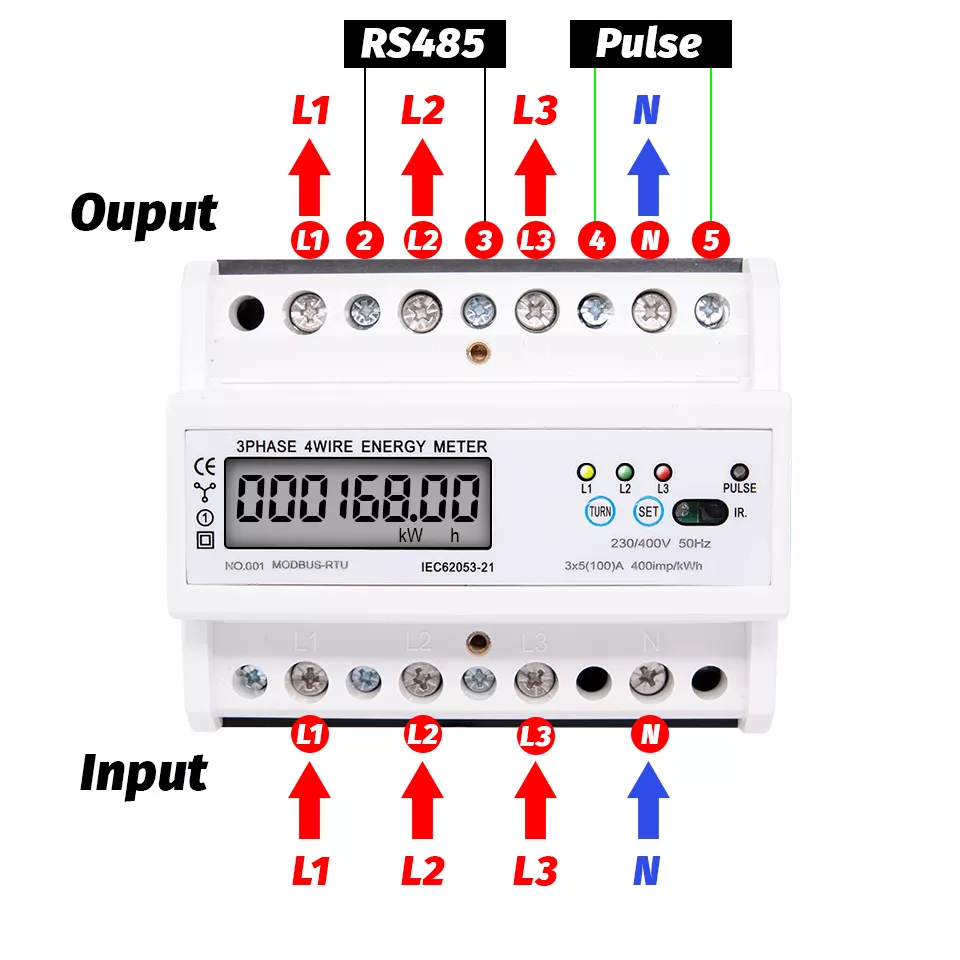

1.This energy meter is with RS485 coummunication.
Type: Three Phase Four Wire Electronic TypeMateriel: Metal + ABSReference Voltage: 3 X 230/400(V)Reference Current: 3 X5(100)ARated
Frequency: 50Hz/60HzConstant Pulse: 400imp / kWh
Display: LCD 6 + 1Power Consumption: ≤2W, 10VAInstallation:35mm DIN railThe meter is multifunctional rotation display :Active Energy KWh ,Reactive Energy(kvarh),Voltage , Current , Power , Frequency and Power Factor.
Features:
1.This energy meter is with RS485 coummunication.
2.6+1 digits LCD display shows the total power consumption.
3.It features high reliability, small volume, light weight, beautiful appearance, advanced technology.

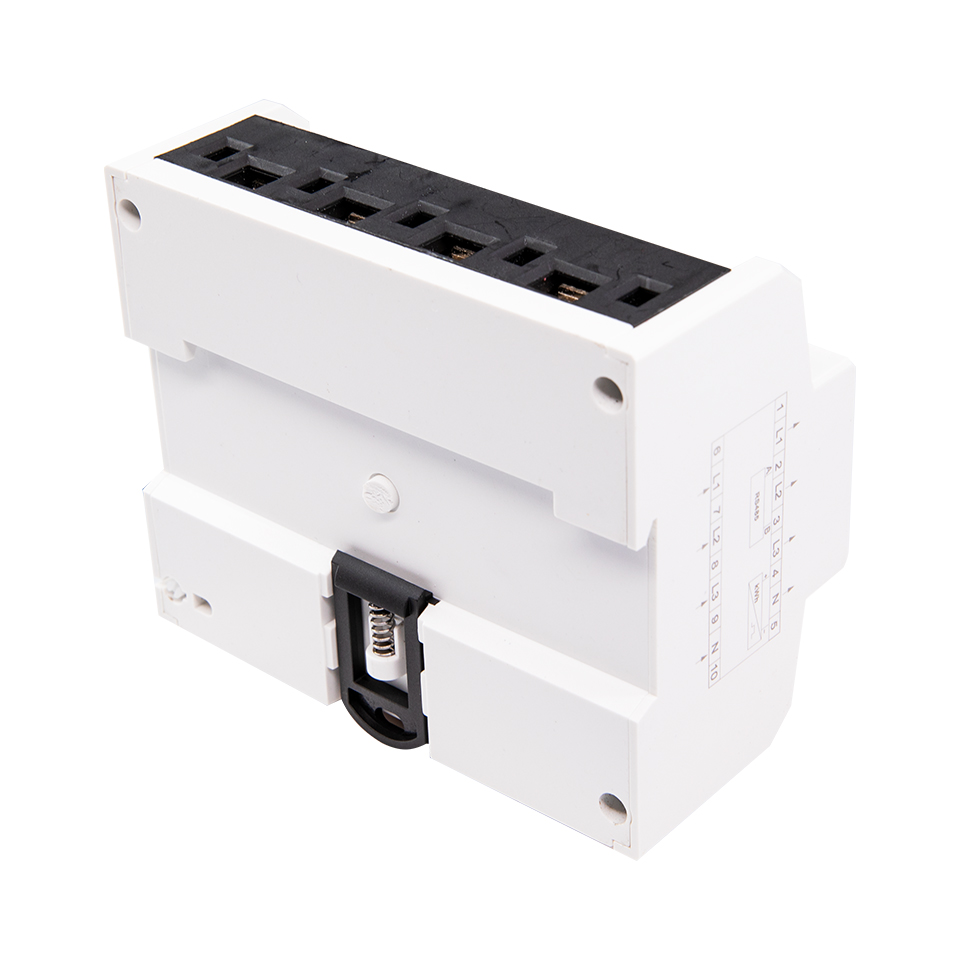

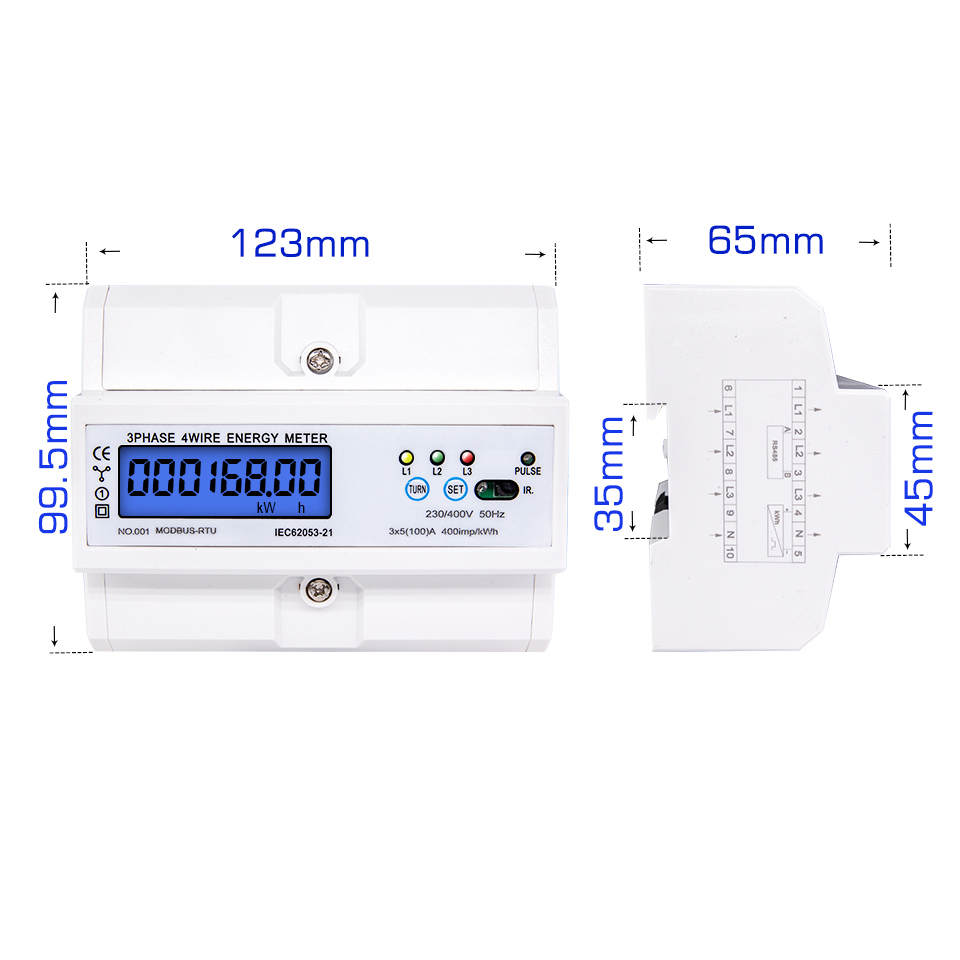

4.Standard 35mm din Rail installation, easy and convenient.
5.It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability,anti electricity-stolen and long life.
6.This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors.
7.The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accuratelymeasure active energy of the energy consumption.Package will include:1 pcs Energy meter 1 pcs English operation manual
