D52-2066din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP
online service
Product Description
User Guide

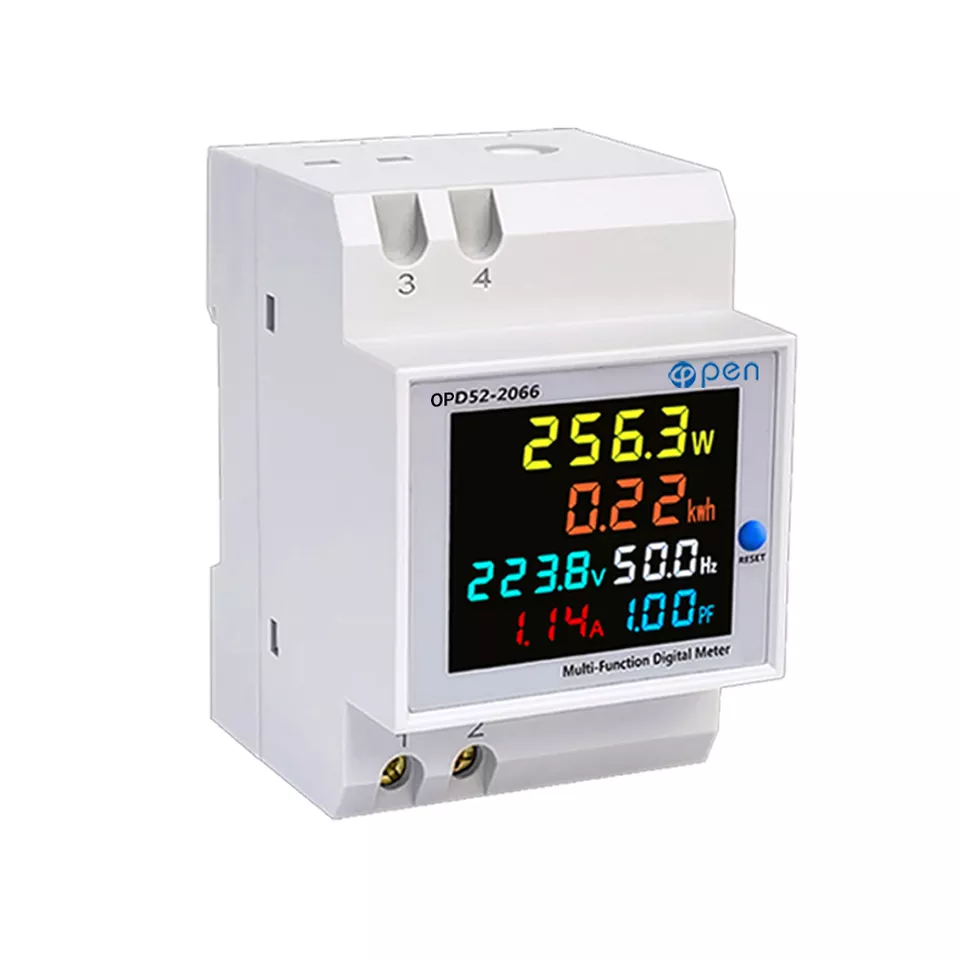

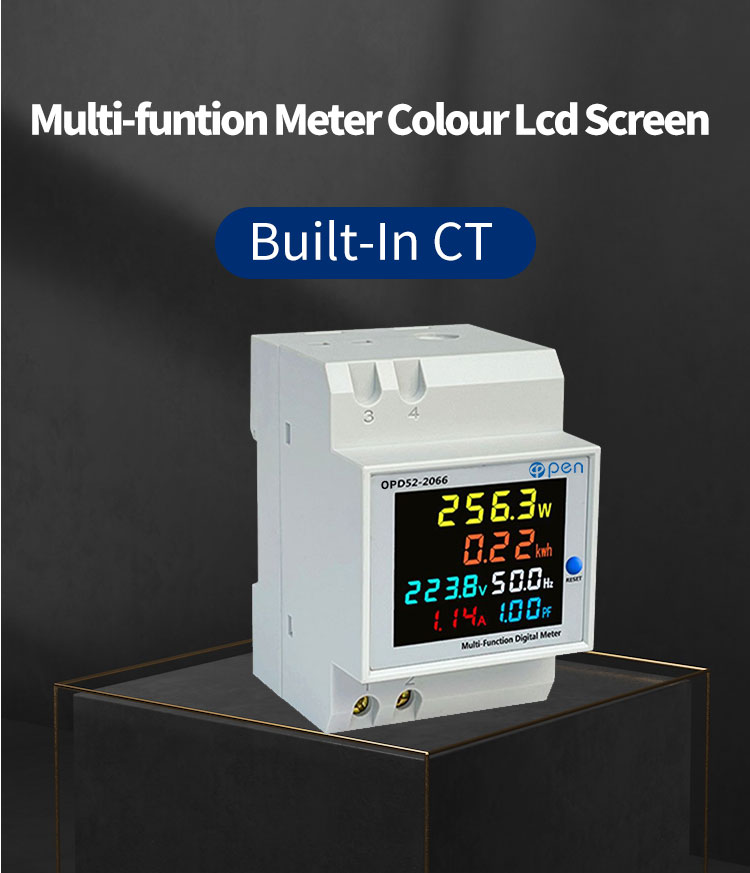

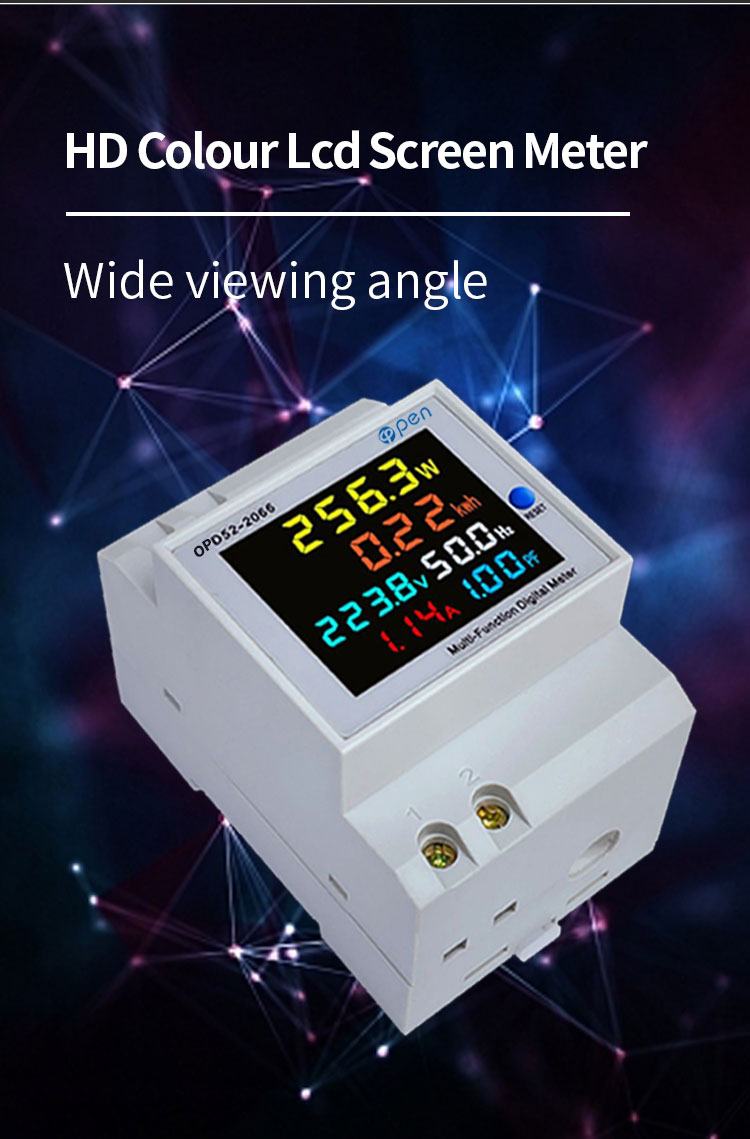

D52-2066 DIN-rail multi-function Digital meter can measure AC voltage, AC current, active power, power factor, frequence and electric energy and the same time. The meter have a colorful, full-view, high definition LCD to display the measure parameters.
Technical Indicators

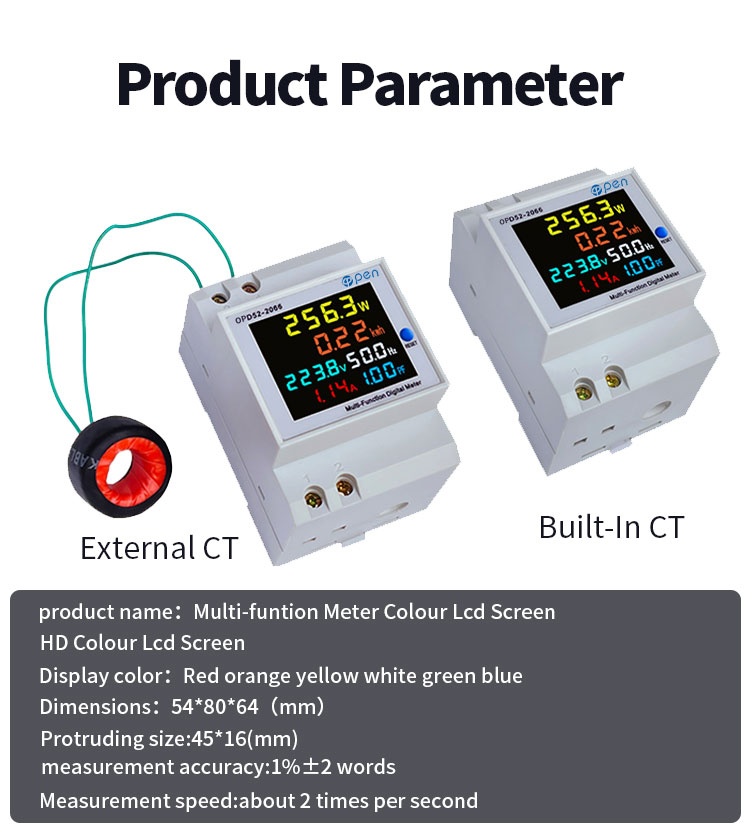

1.Accuracy: 1％±2 words

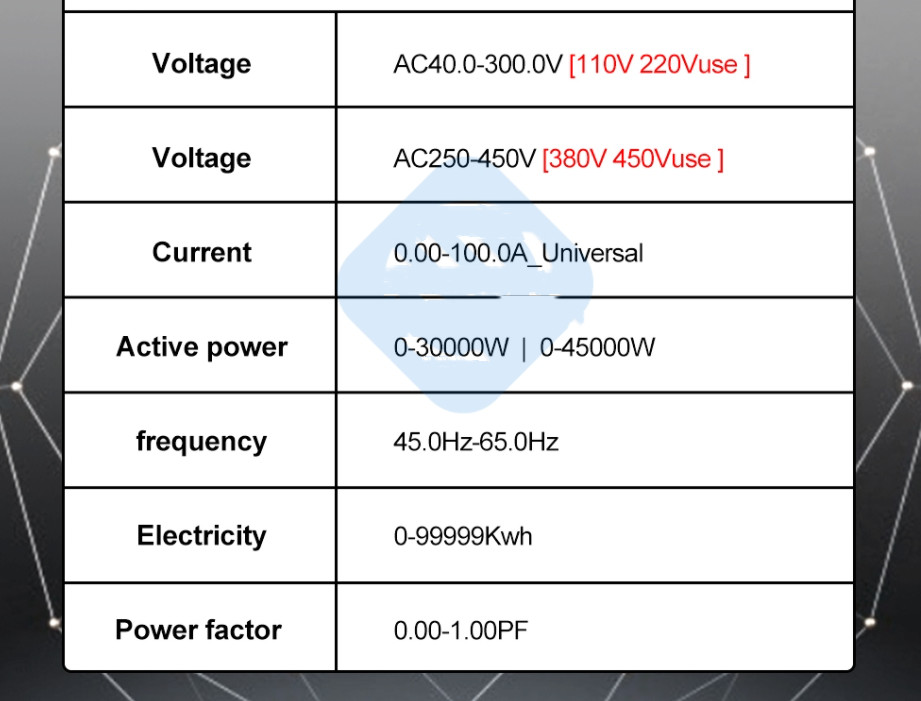

2. Range:
AC voltage: AC 80.0-300.0V or AC 200.0-450.0V (You should select one type of the meter in your order)
AC Current:AC 0-100.0A, the current resolution is 0.01A .
Frequence: 45.0Hz – 65.0Hz
Power Factor: 0.00-1.00PF
Electric Power: 0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the
electric power resolution is 1W.
Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between
0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the
display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh
3. Speed: 2 times per second

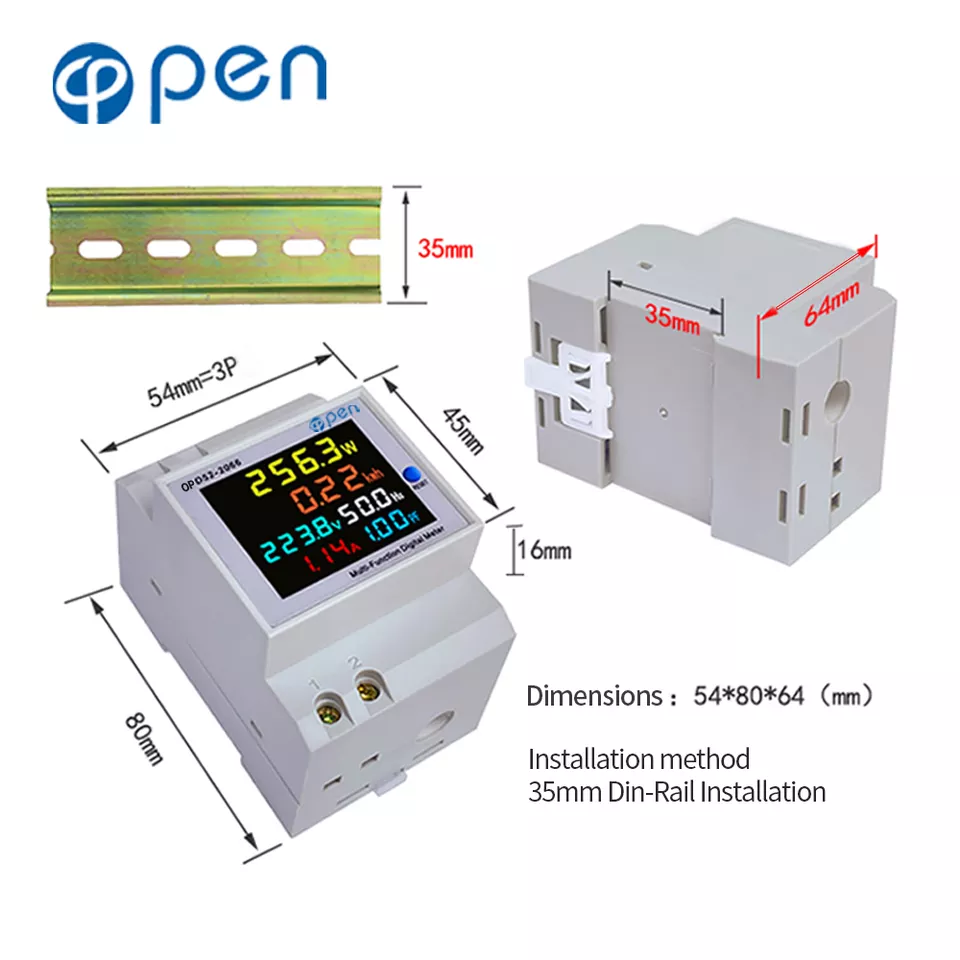

4. Size: 54×80×64
5. Installation: Din-Rail
2. Range:
AC voltage: AC 80.0-300.0V or AC 200.0-450.0V (You should select one type of the meter in your order)
AC Current:AC 0-100.0A, the current resolution is 0.01A .
Frequence: 45.0Hz – 65.0Hz
Power Factor: 0.00-1.00PF
Electric Power: 0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the
electric power resolution is 1W.
Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between
0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the
display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh
3. Speed: 2 times per second
4. Size: 54×80×64
5. Installation: Din-Rail
