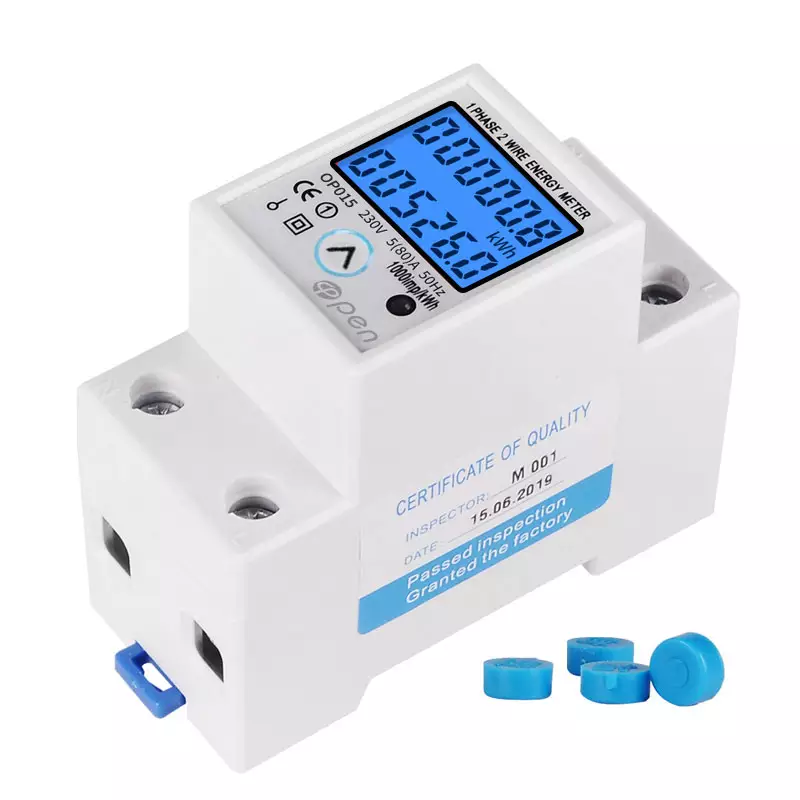

Electric Din Rail Single Phase Two Wire LCD Digital Display Wattmeter Power Consumption Electric Energy Meter kWh AC 230V 50Hz
Product Description
Specification:
| Material | Plastic |
| Accuracy | First Grade |
| Reference Voltage | 220V/230V 50/60Hz |
| Reference Current (Max. Current) | 5(80)A |
| Voltage Test Range | 200-250VAC |
| Current Test Range | 0.1-80A |
| Energy Test Range | 0.1-99999.9 KWH |
| Power Test Range | 0.1-17000W |
| Insulating Property | 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage |
| Display | LCD Backlight / LCD Display |

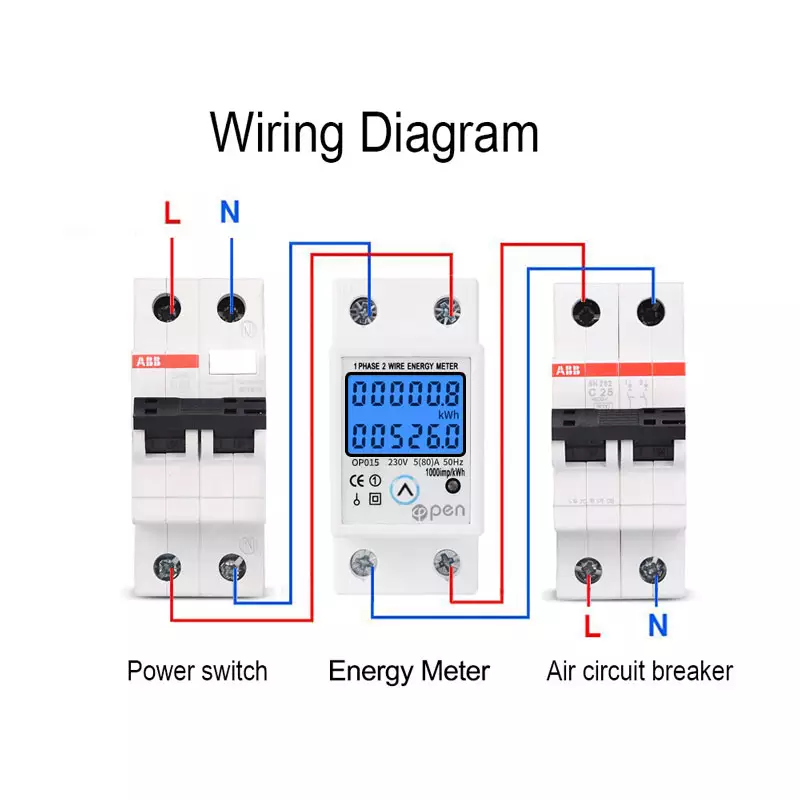

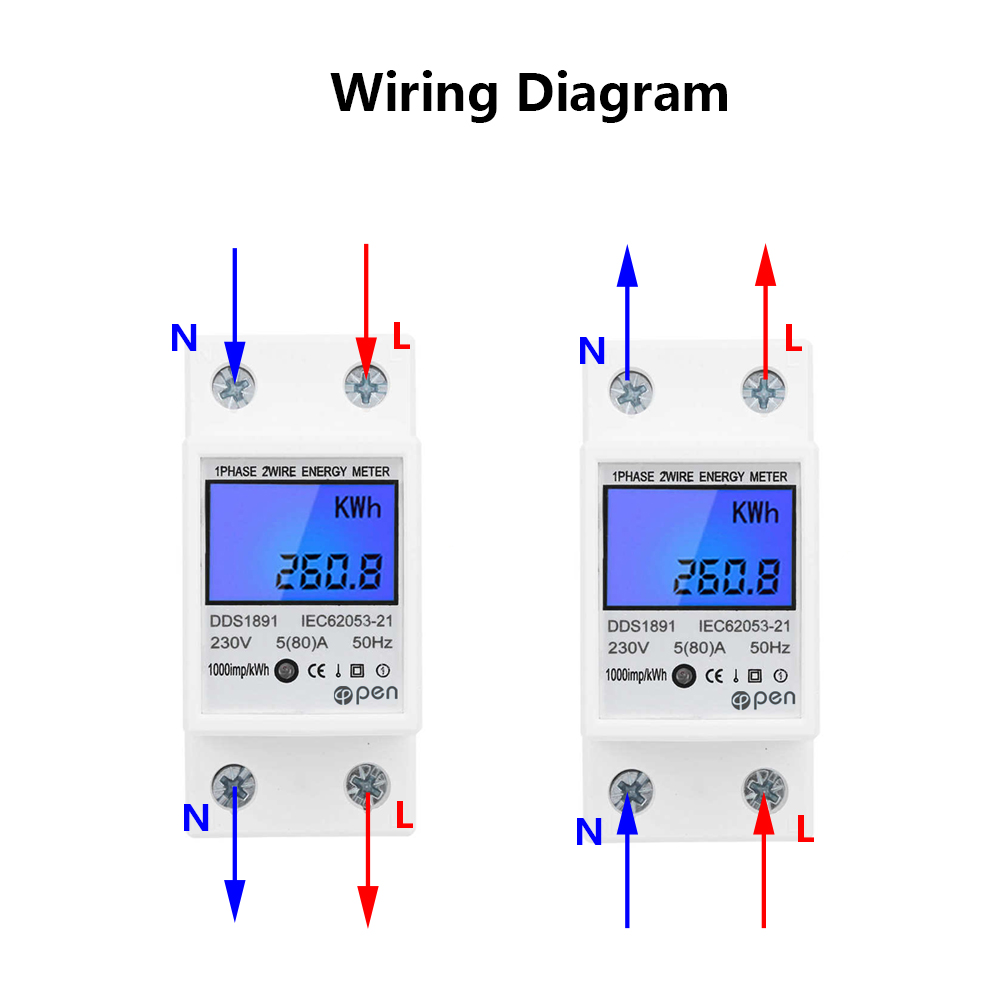

| Wiring Method | Up-out and down-in/up-in and down-out |
| Power | 17000W |
| Environment Temperature | -20C~+50C |

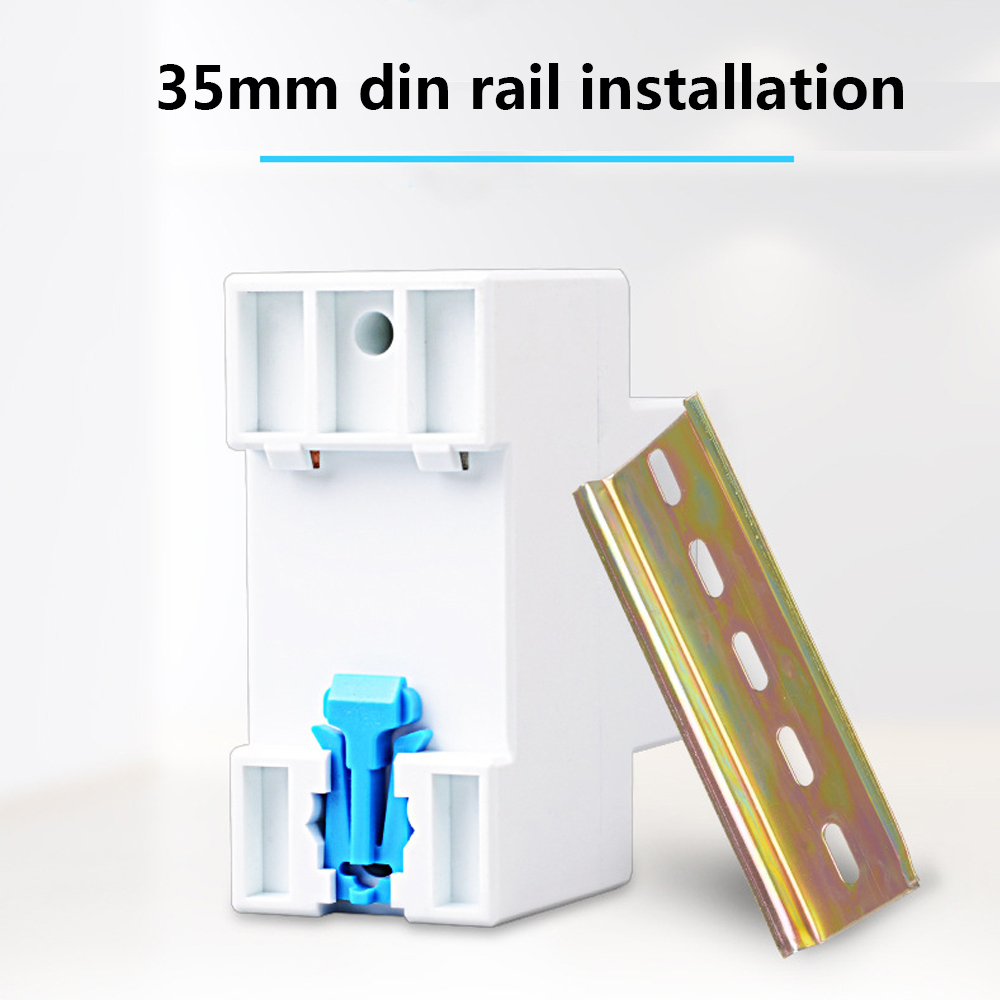

| Pole Width | 17.5mm/0.7in |

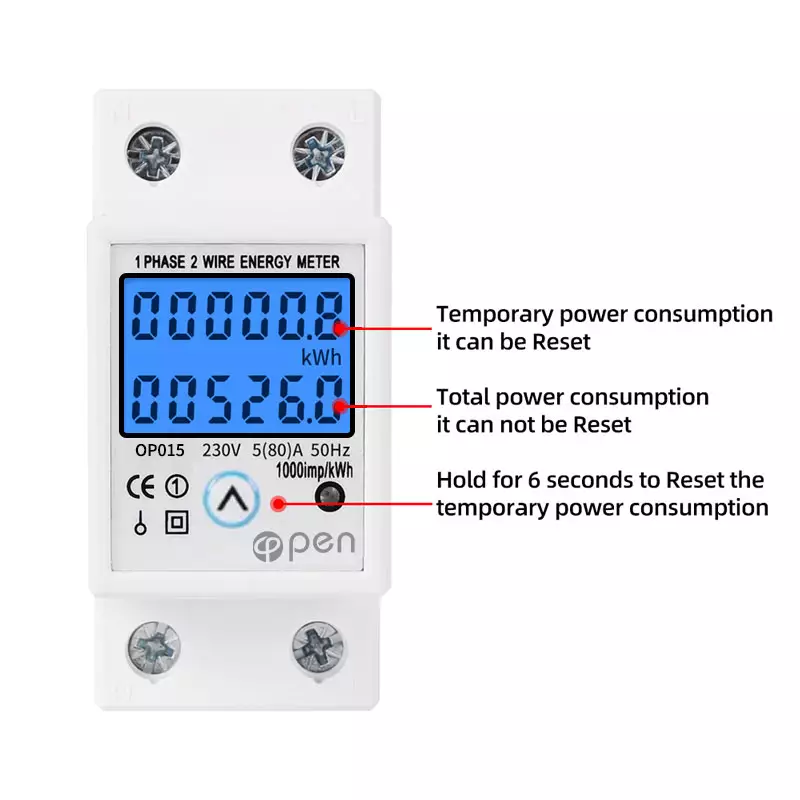

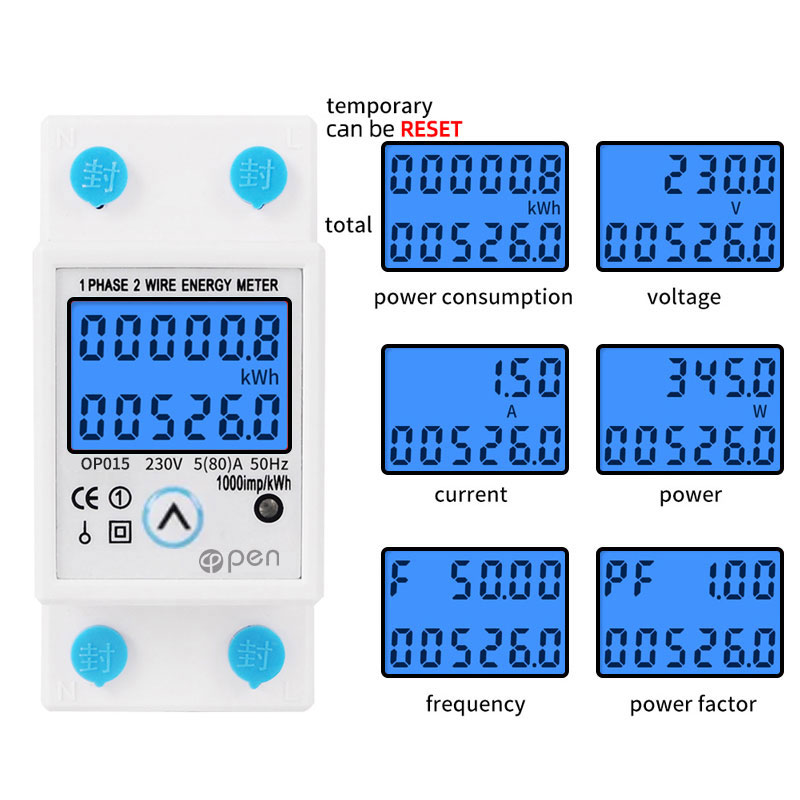

| Functions | Display electricity, voltage, current, frequency, power factors |

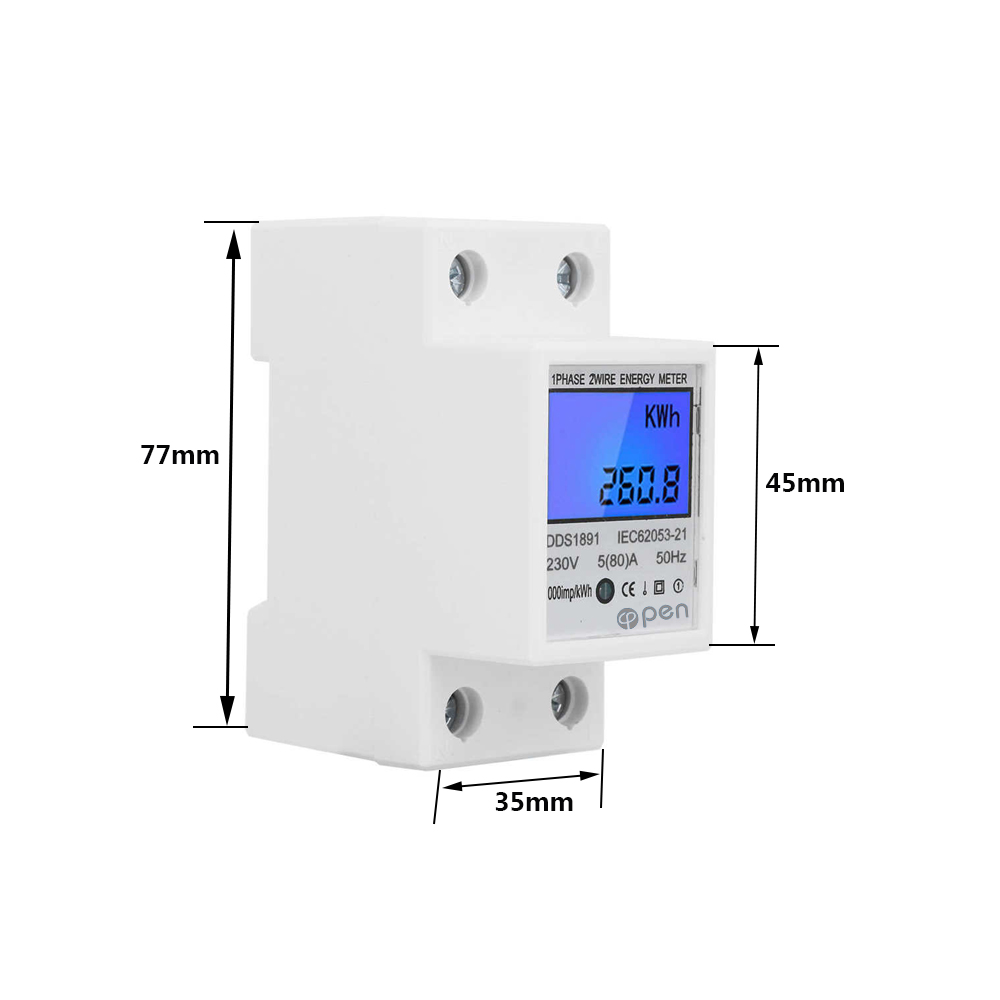

| Package Size | Approx. 8.6 * 4.2 * 7.2cm/3.4 * 1.7 * 2.8in |
