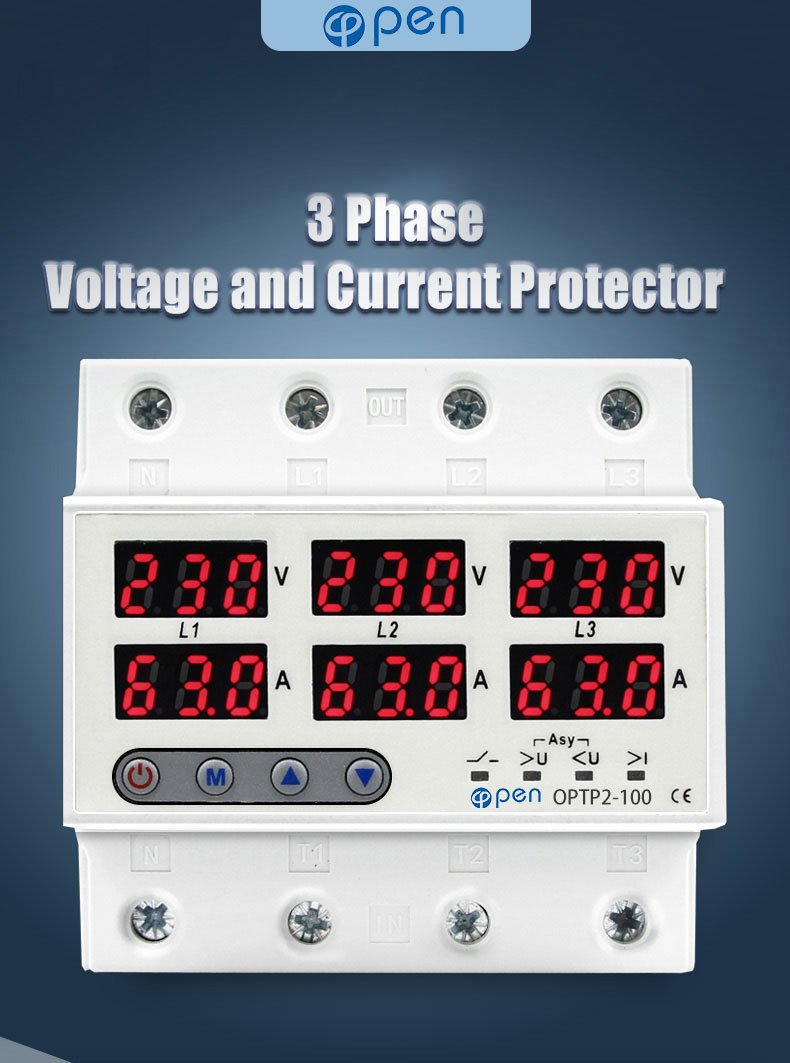

Three Phase Adjustable Over and Under Voltage Protector with Over Current Protector 100A
Product Description
Functions:
1.Over-voltage Adjustable protection
2.Under-voltage Adjustable protection
3.Over-Current Adjustable protection
4. Asymmetry protection
5.Phase squence protect
6.Automatic time Adjustable recovery
Parameter
| Code | Parameter | Value |
| 1 | Power On Time | 1-500S |
| 2 | Over Voltage | 230-300V |
| 3 | Recovery Voltage | 220-295V |
| 4 | Recovery Time | 1-500S |
| 5 | Power Off delay Time | 0.1-30S |
| 6 | Under Voltage | 140-210V |
| 7 | Recovery Voltage | 145-215V |
| 8 | Recovery Time | 1-500S |
| 9 | Power Off delay Time | 0.1-30S |
| 10 | Voltage Deviation | -9.5 to 9.5% |
| 11 | Asymmetry | 20-99V |
| 12 | Phase squence protect | on/off |
| 13 | Over Current | 3-100A |
| 14 | Recovery Time | 1-500S |
| 15 | Power Off delay Time | 0.1-30S |
| 16 | Current Deviation | -9.5 to 9.5% |
| 17 | Continues Over Current Times | 1-20 off |
