Photovoltaic Panel Connector Solar Panel Connection Waterproof Male and Female Photovoltaic Wrench Accessories
online service
Product Description

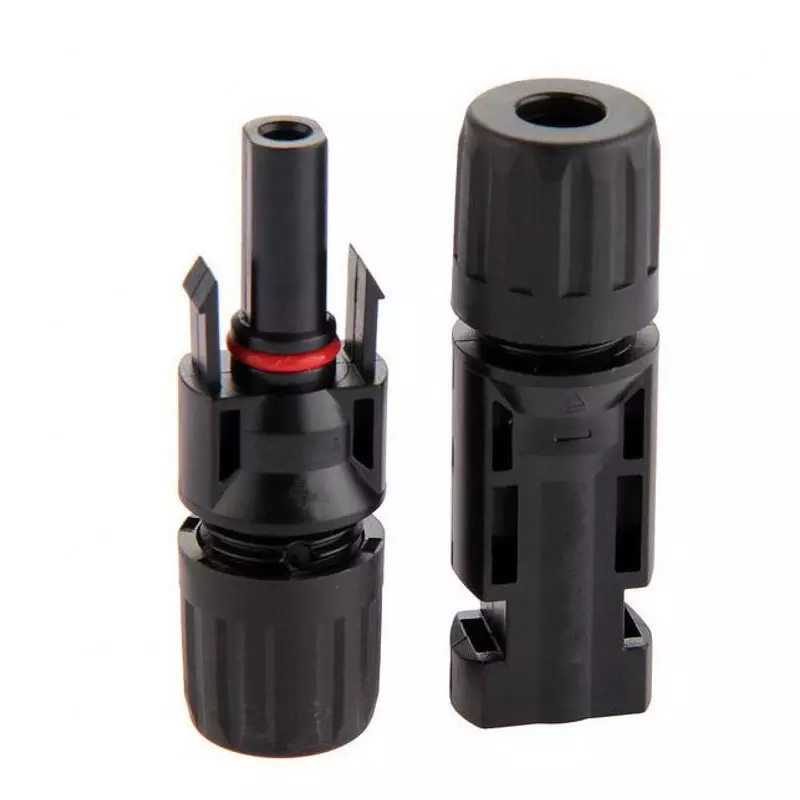

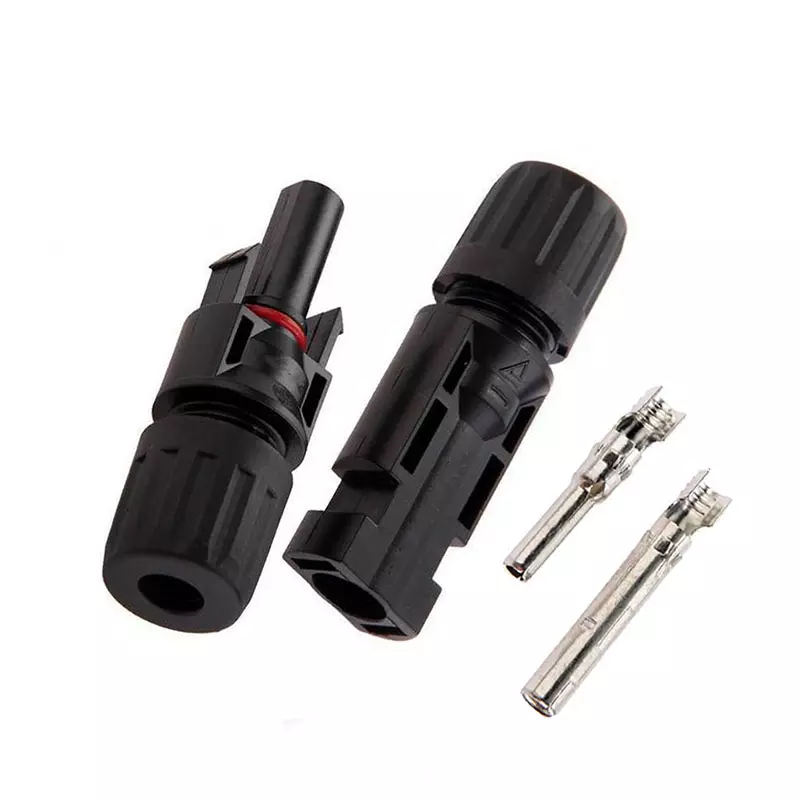

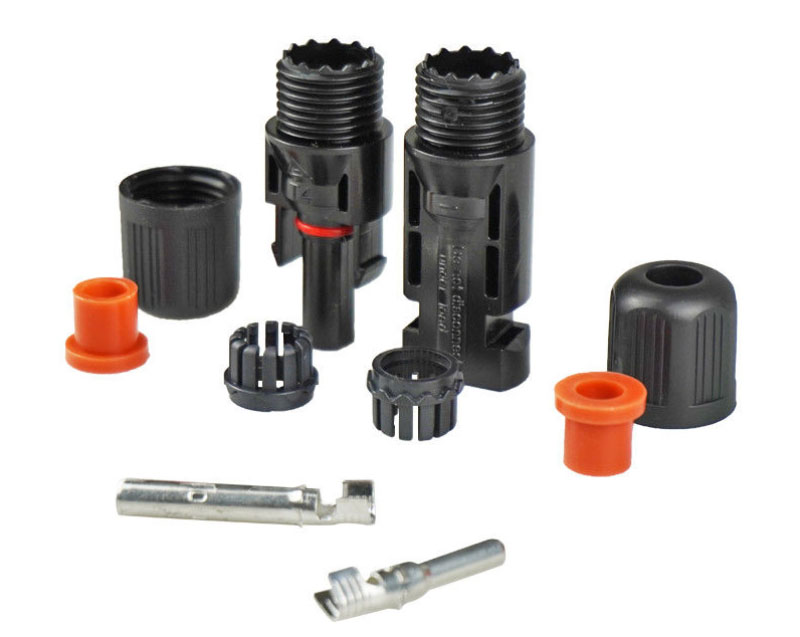

Photovoltaic Panel Connector Solar Panel Connection MC4 Waterproof Male and Female Photovoltaic Wrench Accessories1pcs
Rated current: 16A (2.5mm2, AWG14), 30A (4mm2, AWG12)
52A (6mm2, AWG10)
Regular rated current: 30A
Withstanding voltage: DC1000V
Contact resistance: <2mΩ
Insulation resistance: >500MΩ
Applicable single-core cable cross-section: 2.5mm2, 4mm2, 6mm2
14AWG, 12AWG, 10AWG
Cable outer diameter range: Φ5mm～Φ7mm
Ambient temperature: -40℃～+ 105℃

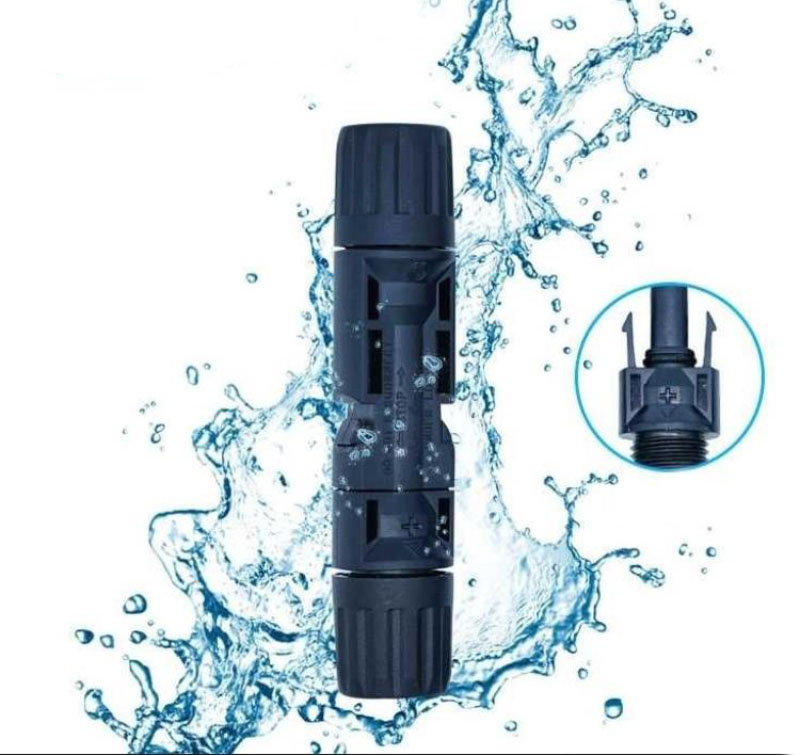

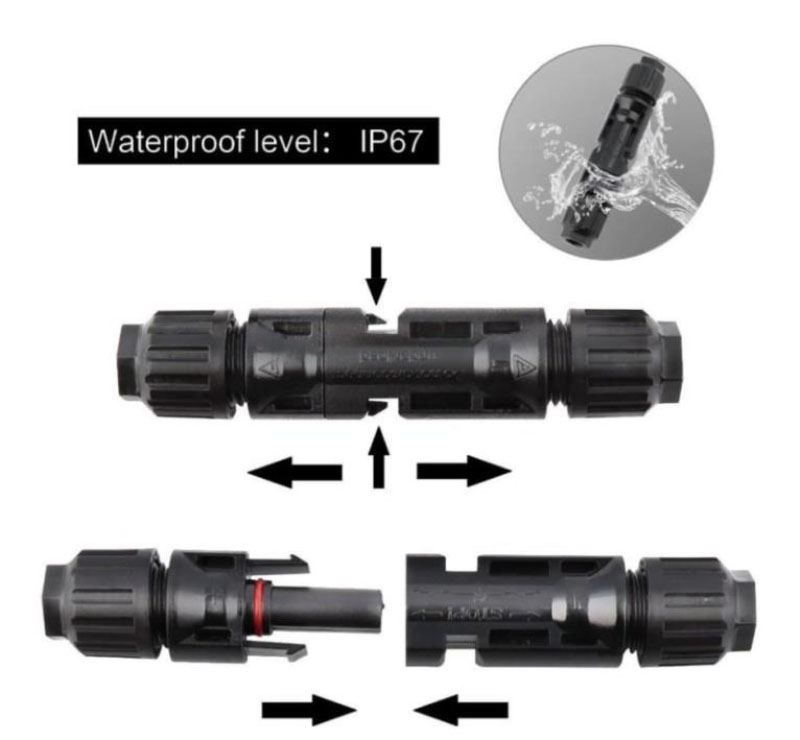

Protection grade: IP67
Safety class: Ⅱ
Housing: TPU

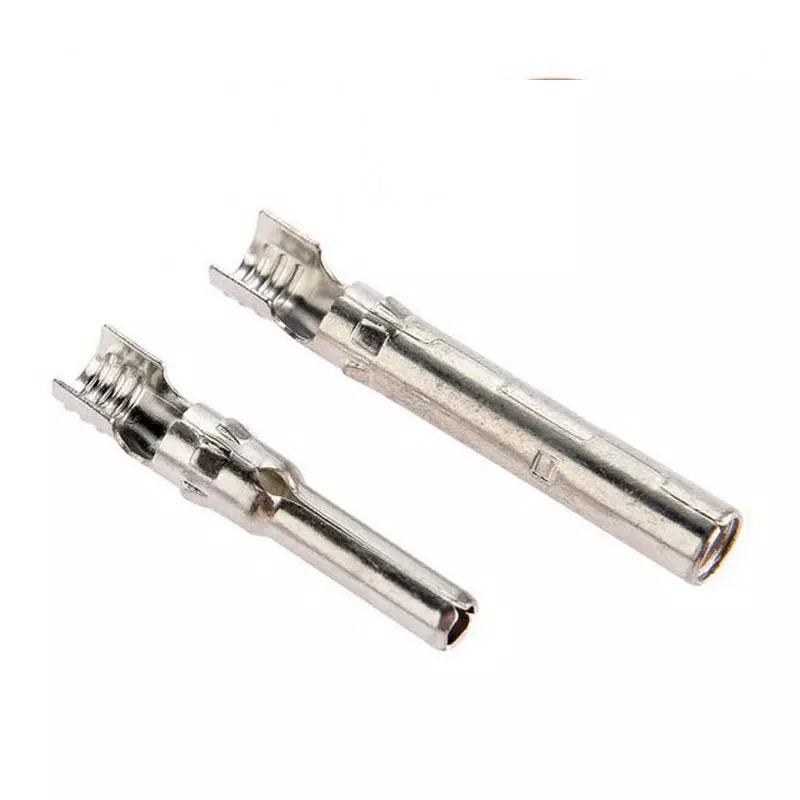

Contact parts:Purple copper CN, tinned SN
Wiring method: Crimp
Rated current: 16A (2.5mm2, AWG14), 30A (4mm2, AWG12)
52A (6mm2, AWG10)
Regular rated current: 30A
Withstanding voltage: DC1000V
Contact resistance: <2mΩ
Insulation resistance: >500MΩ
Applicable single-core cable cross-section: 2.5mm2, 4mm2, 6mm2
14AWG, 12AWG, 10AWG
Cable outer diameter range: Φ5mm～Φ7mm
Ambient temperature: -40℃～+ 105℃
Protection grade: IP67
Safety class: Ⅱ
Housing: TPU
Contact parts:Purple copper CN, tinned SN
Wiring method: Crimp
