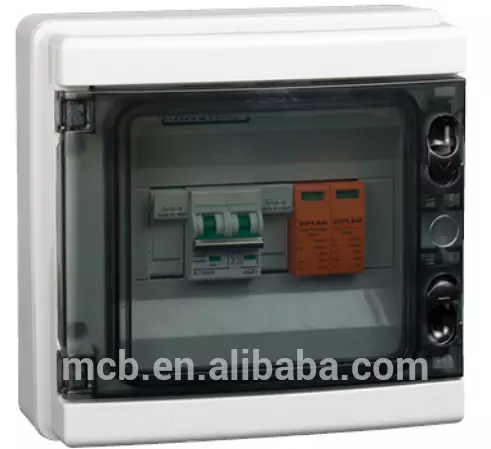

SHLX-PV1 / 1 DC Combiner Box
High reliability:
Selection of special fuse for photovoltaic

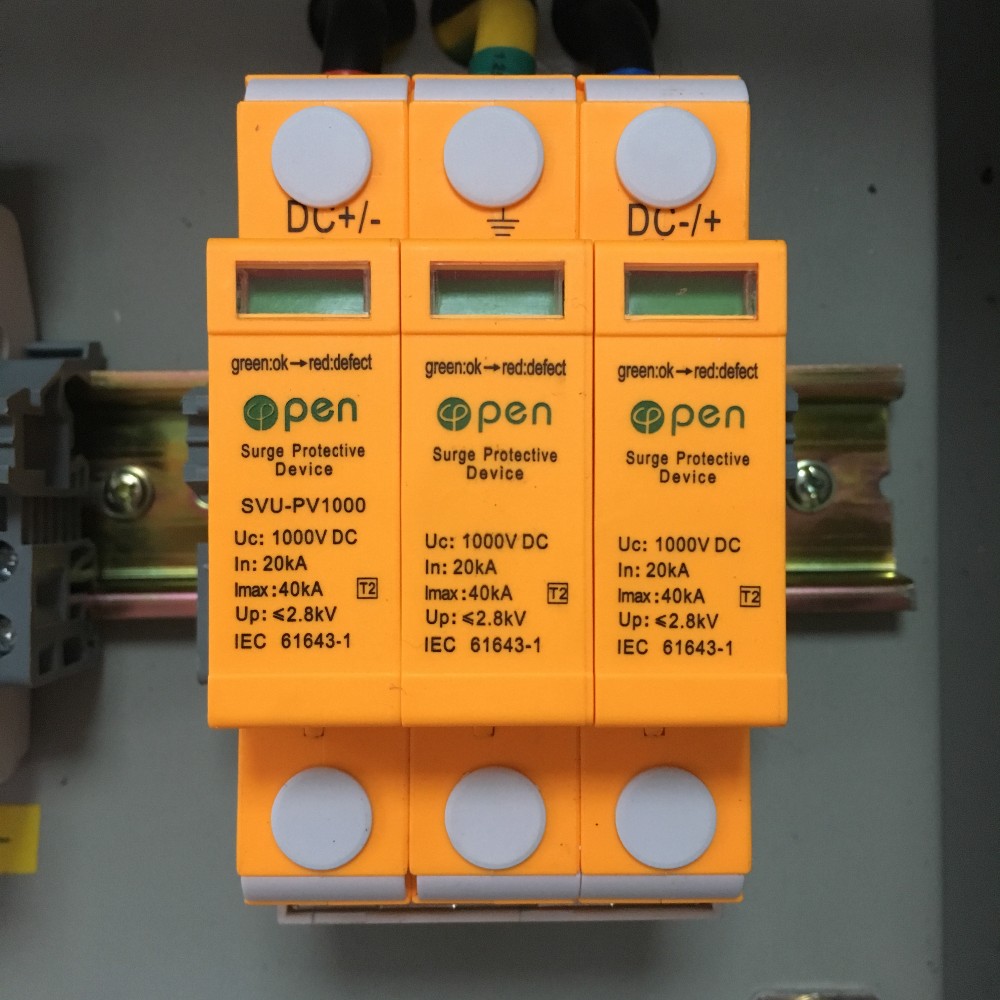

Selection of photovoltaic special surge protector

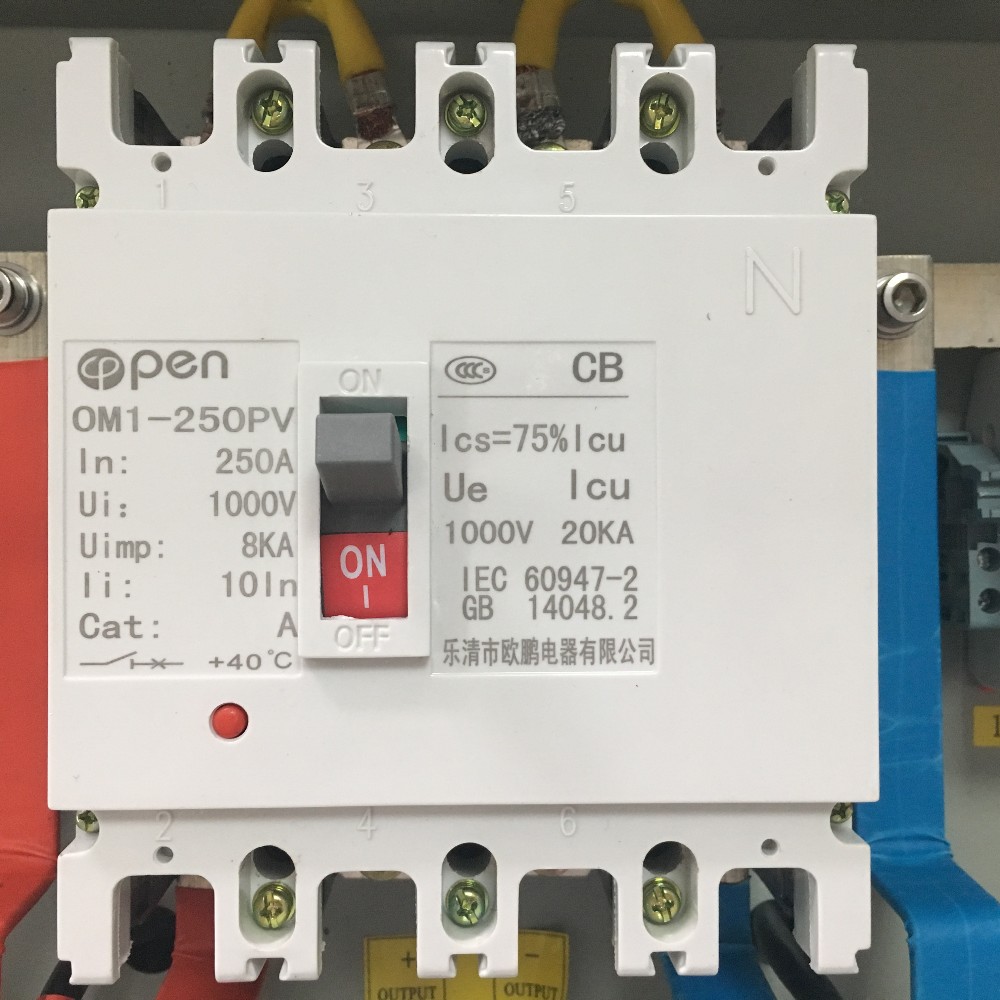

Selection of photovoltaic dedicated DC circuit breaker or rotary disconnector
High adaptability:
IP65 protection class, waterproof, dustproof, anti-ultraviolet
Strict high and low temperature test, wide useful regional
Easy installation, simplified system wiring, easy wiring
The box is made of PVC material
Flexible configuration:
For single crystal silicon, polysilicon, thin film battery PV modules, can modify the photovoltaic fuses, circuit breakers, rotary isolation switch’s current level.
Product Description
SHLX-PV1 / 1 PV combiner box apply to the inverter which have maximum input voltage DC550V / DC1000V, PV input line number 1, the output of 1, MPPT number of 1. The box is made of PVC engineering materials , with fire retardant, temperature rise, anti-impact, anti-ultraviolet and other tests, protection level to IP65 and so on. The product strictly follow the "photovoltaic convergence device technical specifications" CGC / GF037: 2014 requirements for the design and configuration, to provide users with a safe, simple, beautiful and practical photovoltaic system products.
Technical Parameters
|
System maximum DC voltage |
550V |
1000V |
|
Maximum input current per path |
15A |
|
|
Maximum number of inputs |
1 |
|
|
Maximum output switching current |
16A/20A |
|
|
Number of inverters MPPT |
1 |
|
|
Number of output |
1 |
|
|
Lightning protection |
||
|
Test category |
Grade II |
|
|
Nominal discharge current |
20kA |
|
|
Maximum discharge current |
40kA |
|
|
Voltage protection level |
2.8kV |
3.8kV |
|
Maximum continuous operating voltage |
630V |
1050V |
|
Poles |
2P |
3P |
|
Structural features |
Plug-in module |
|
|
system |
||
|
Monitoring module |
N |
|
|
Protection class |
IP65 |
|
|
Output switch |
DC circuit breaker (standard) / DC rotary disconnector (optional) |
|
|
SMC4 waterproof connector |
standard |
|
|
PV DC fuses |
standard |
|
|
Photovoltaic DC surge protector |
standard |
|
|
Anti-diodes |
N |
|
|
Box material |
PVC |
|
|
Installation method |
Wall-mounted |
|
|
Operating temperature |
-25℃~+55℃ |
|
|
Altitude |
2000 meters |
|
|
Allow relative humidity |
0-95%,No condensation |
|
|
Mechanical parameters |
||
|
Width * height * depth (mm) |
215*210*100 |
300*260*140 |
